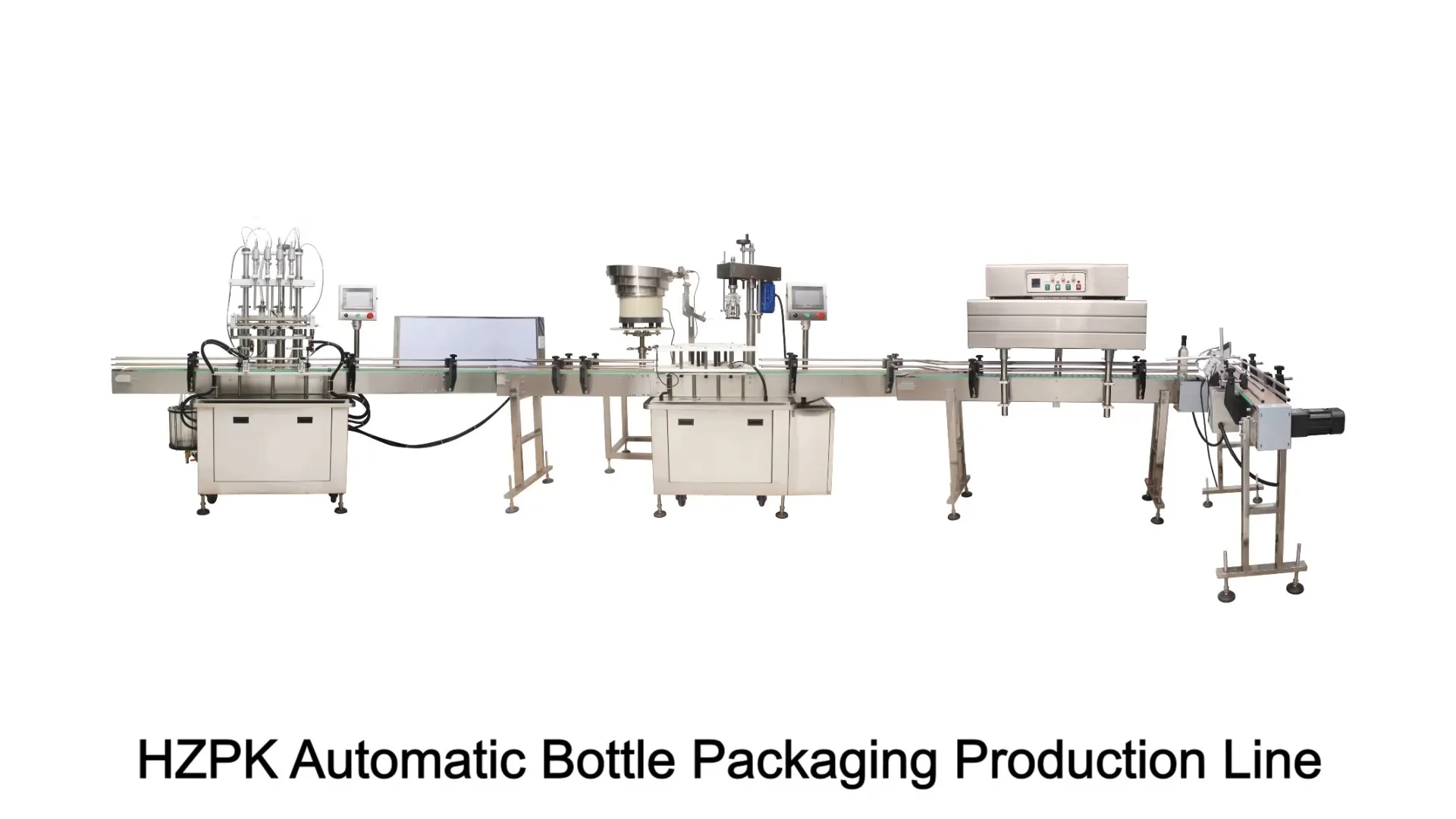

Fully Automatic Glass Bottle Liquid Filling and Packaging Production Line, suitable for filling, capping, heat-shrink film sealing, and coding of products such as alcoholic beverages and condiments. Below are the detailed configurations and functional descriptions of the production line:
Composition of the Fully Automatic Glass Bottle Filling and Packaging Line
1. Fully Automatic 4-Head Piston Filling Machine
- Utilizes piston filling, suitable for liquids (e.g., water, oil, syrup, etc.).
- Number of filling heads: 4-head synchronous filling, high efficiency (capacity approximately 800–1,200 bottles/hour, depending on bottle type).
- Lifting filling system: The filling nozzle automatically adjusts to the bottle mouth height to prevent liquid splashing.
- Anti-drip design: Automatic liquid retraction after filling to avoid dripping and contamination of the bottle or conveyor belt.
- Compatible bottle sizes: 10ml–5,000ml (customizable).
2. Automatic Rotary Capping Machine
- Cap feeding method: Vibratory bowl for automatic cap alignment and feeding.
- Capping method: Metal lock cap head, customized according to the bottle, high sealing performance.
- Compatible cap types: Screw caps, press-on caps, tamper-evident caps, lug caps, etc.
3. Bottle Mouth Film Heat Shrink Machine
- Seals aluminum foil or PVC/POF heat-shrink film around the bottle mouth.
- Heating method: Hot air circulation with adjustable temperature.
- Applications: Alcoholic beverages, premium drinks, olive oil, and other products requiring sealed anti-counterfeiting.
4. Inkjet Printer
- Printing content: Production date, batch number, barcode, QR code, etc.
- Compatible materials: Glass bottles, labels, caps, etc.
Production Line Workflow
1. Empty bottle loading → 2. Automatic filling → 3. Automatic capping → 4. Heat-shrink film sealing → 5. Coding → 6. Finished product output
Optional Expansion Equipment
Automatic Labeling Machine: Applies product labels after filling (options include self-adhesive or paste labeling).
