1. More than 20 years manufacture in packing machine
2. 100% QC inspection before shipment
3. 12 months warranty
4. Product Certificated by CE

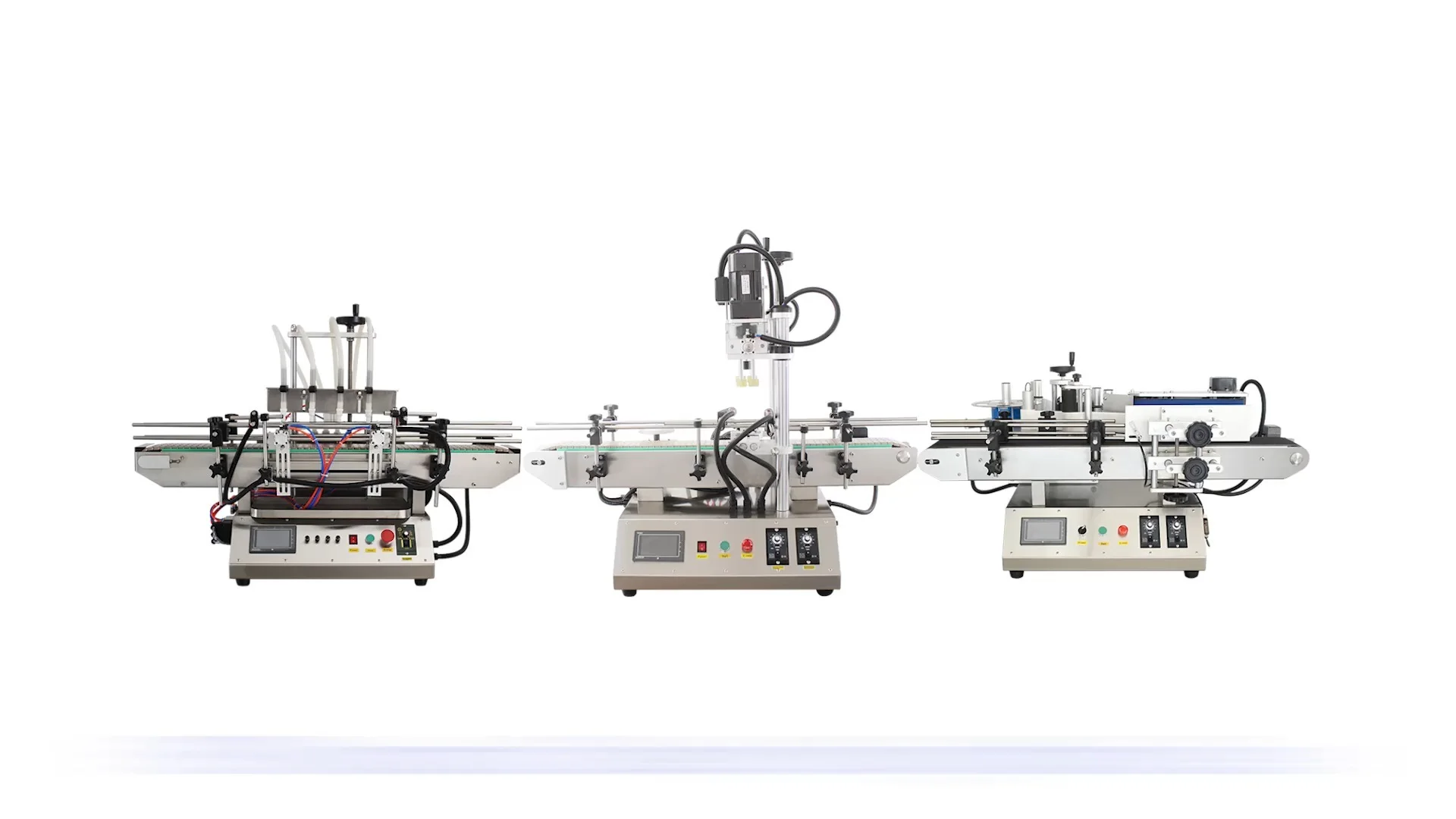

The tabletop packaging system is primarily designed for the filling, capping, and labeling of liquids into bottles, including lotions, milk, water, and similar substances. This packaging line is optimized for small bottle sizes, typically up to 500ml, making it well-suited for applications in the food, pharmaceutical, agricultural, and chemical sectors.
Feature
1.Can customize products according to customer bottle samples.
2.The PLC and touchscreen automation control system facilitate effortless adjustments.
3.Crafted entirely from 304 stainless steel, the unit boasts an elegant, space-saving design, coupled with consistent, dependable operation and simple upkeep.
4.Precision and versatility are key attributes.
5.CE certification validates its compliance with safety standards.
Parameter
|
Filling Machine |
Capping Machine |
Labeling Machine |
|
|
Voltage |
AC 220V 50-60hz (110V customizable) |
||
|
Filling Volume |
50-500ml |
/ |
/ |
|
Accuracy |
±2-3ml |
/ |
±1mm(depend on bottle) |
|
Filling Speed |
15-25bpm |
15-20bpm |
10-40bpm |
|
Bottle Height |
<260mm |
40-200mm |
/ |
|
Bottle Diameter |
<100mm |
50-80mm |
30-100mm |
|
Min.label roll Inner diameter |
/ |
/ |
75mm |
|
Max.label roll out diameter |
/ |
/ |
260mm |
|
Label size |
/ |
/ |
W:30-100mm,L:30-160mm |
|
Air Pressure |
0.6-0.8MPa |
/ |
|
|
Required Air Compressor |
≥1.1kw 50L |
/ |
|
|
Conveyor Size |
1200*120mm |
||
|
Machine Size |
1200*500*500mm |
1200×700×900mm |
1200*760*670mm |
|
Machine Weight |
75KG |
81KG |
115KG |
