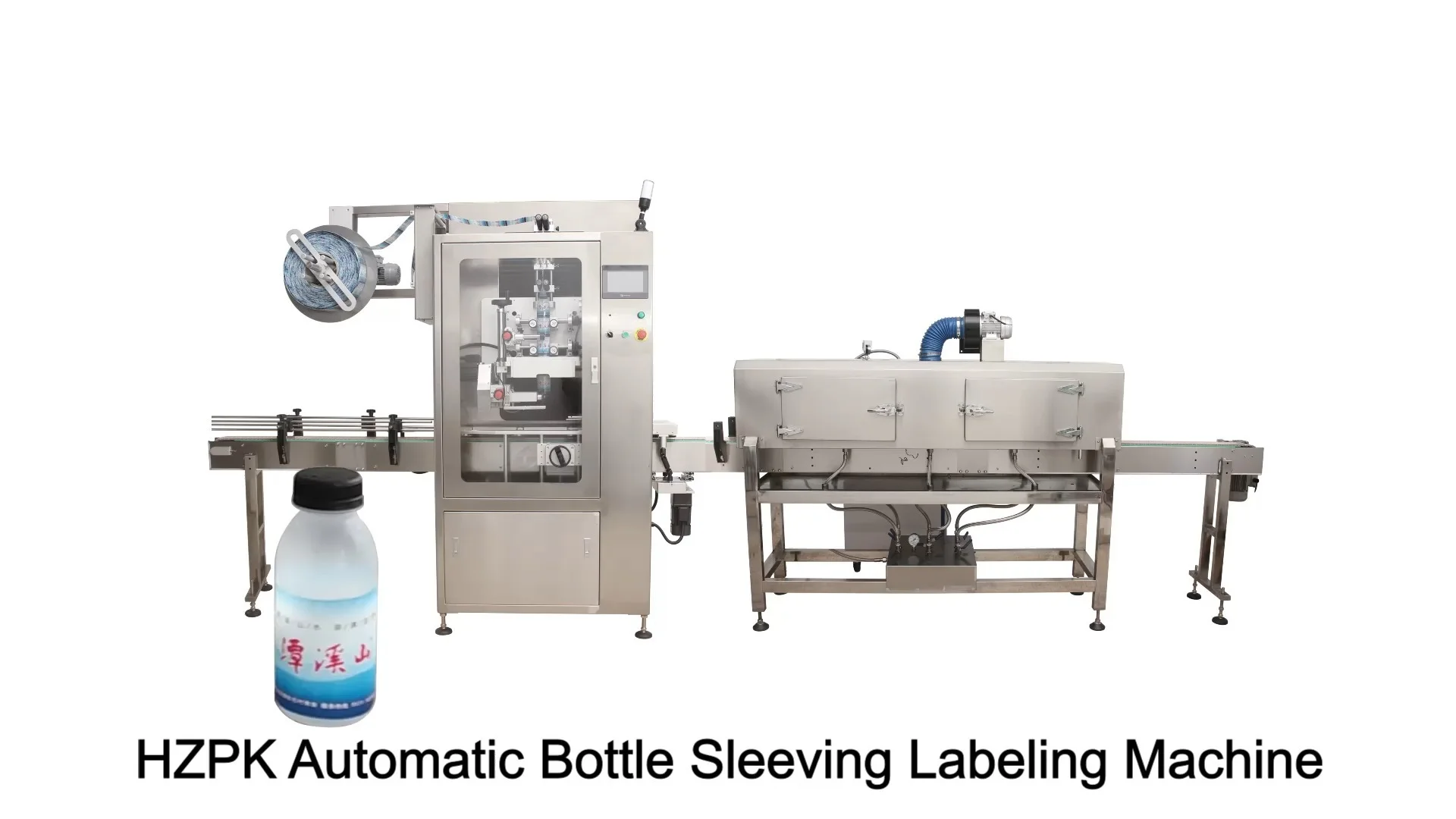

Fully Automatic Sleeve Labeling Steam Shrinking Machine Line

An Efficient and Precise Packaging Solution.

This equipment set forms an ideal pairing on the packaging line. The fully automatic sleeve labeler places labels onto product containers with high speed and accuracy, while the steam shrinking machine uses low-temperature steam to tightly conform labels to the container surface, making it particularly suitable for heat-sensitive materials like PET. Working in seamless coordination, the two systems automate the entire process from label application to final shaping. The resulting packaging is smooth, fully adherent, and visually clear, widely used in beverages, daily chemicals, and condiment industries to effectively enhance both product appearance and production efficiency.

quantity:

Label Thickness:

≥0.035mm

Label length:

40-280mm

Accuracy:

≥98%

Speed:

150bots/min

Bottle height:

30-280mm

Bottle Diameter:

Ø50-90mm/Ø90-120mm

Power:

24kw

Automatic Sleeve Labeling & Steam Shrinking System

Fully Automatic Sleeve Labeling Steam Shrinking Machine Line 13

This integrated system provides a complete automated packaging solution, combining sleeve labeling and heat shrinking for efficient, high-quality results.

Fully Automatic Sleeve Labeling Steam Shrinking Machine Line 14

Precision & Efficiency：Fully automatic operation with servo-driven precision ensures high-speed performance and accurate label placement.

Flawless Finish：Steam shrinking technology delivers a smooth, wrinkle-free finish for premium product presentation.

Wide Compatibility：Adapts to various container shapes and label materials, enabling quick changeovers.

IMG_0053 (3)

Reliability & Durability：Built with high-quality components and intelligent control for stable, long-term operation and reduced maintenance.

Label Guide Tube

Guides and opens the flat film into a tubular shape.

Cutting & Sleeving Section

Optical Sensor: Detects product position to initiate cutting.

High-Speed Rotary Cutter: Precisely cuts film into labels.

Label Spreader: Conical guide that positions label for smooth application.

Conveying & Transmission Section

Infeed Conveyor Belt: Transports products to be labeled into the machine at a set speed and pitch.

Main Drive System: Powered by a precision servo motor, it synchronizes the cutting knife and film feeding. This is the heart of the machine's high-speed, high-accuracy operation.

Unwinding & Tension Control Section

Label Roll Holder: The shaft that holds the roll of sleeve-shaped shrink film.

Tension Control System: Comprises tension bars, brakes. It ensures the film is fed with constant and appropriate tension, preventing the label from becoming loose or tearing, which is fundamental for a smooth application.

Positioning & Alignment Section

Alignment Brushes: Make minor adjustments to the label after it's placed on the product, ensuring consistent height.

Central Control System

PLC & Human-Machine Interface (HMI): The brain of the machine. Parameters (like label length, speed) are set via the touchscreen HMI, while the PLC coordinates all electrical components and provides fault diagnostics and alarms.

Shrinking Tunnel

Tunnel Casing: Insulated chamber where label shrinking occurs.

Steam Jet System: Internal nozzles/slots ensure even steam distribution for a seamless, wrinkle-free finish.

Insulation Layer: Stainless steel with heat-resistant filling to minimize heat loss and ensure safety.
