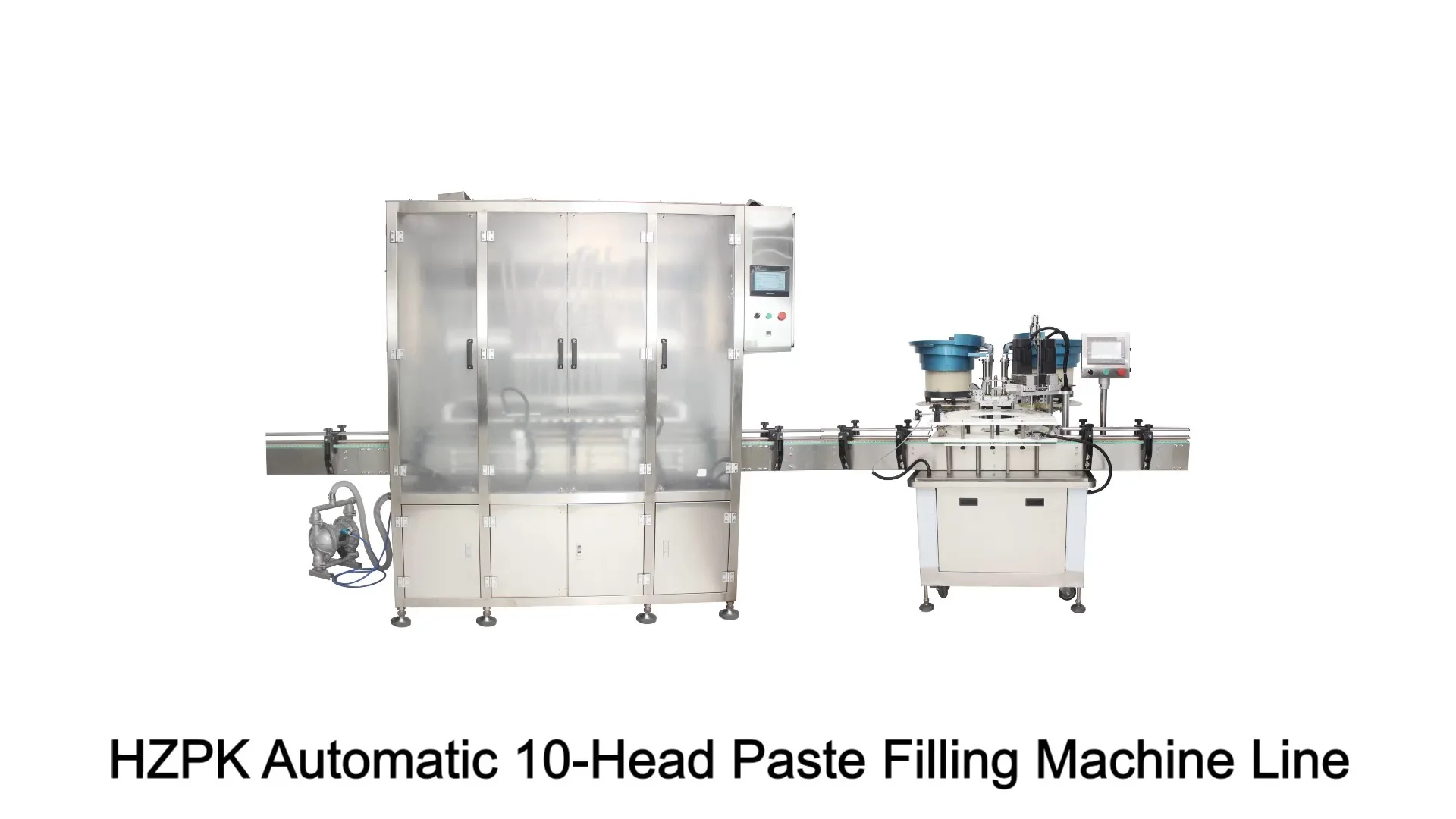

The fully automatic 10-head filling and capping machine production line is designed for the automated packaging of liquid products. The equipment employs a piston filling system driven by a high-precision servo motor, with the filling accuracy is stably controlled within ±1%.
Filling Machine
The filling machine is equipped with 10 filling heads and features a lifting system that automatically adjusts the nozzle position during the filling process to minimize splashing and leakage.
The nozzles are designed with an anti-drip function, automatically retracting after filling to prevent residue.
Capping Machine
The capping machine adopts a rotary table design, incorporating a dual-vibratory bowl automatic cap feeding system and dual capping heads.
The customized vibratory bowl ensures automatic cap alignment and directional delivery, guaranteeing continuous and stable cap supply.
The dual capping heads improve efficiency by over 50%, with adjustable torque.
It can be customized to accommodate different cap types, such as pump caps and metal caps.
The entire machine is controlled by a PLC system with a touchscreen HMI for user-friendly operation.
It supports the storage of multiple product parameters, enabling quick changeovers.
Constructed with stainless steel, the production line complies with CE standards and is easy to clean and maintain.
It is widely used in packaging production across industries such as cosmetics, food, and beverages.
